PTFE AHESIVES FABRICS TECHNICAL DATA SHEET

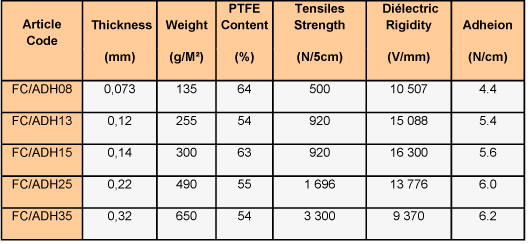

PTFE IMPREGNATED ADHESIVE GLASS FIBRE

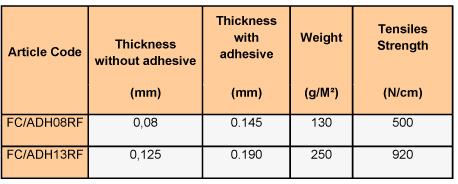

EXTRA –SMOOTH QUALITY WITH SILICONE ADHESIVE ON ONE SIDE (+260°C)

Pre-cut from 10 mm minimum to 1000 mm maximum

High quality welding: large-scale bag-making, PVC windows…

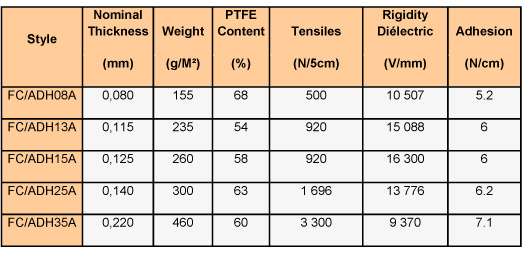

STANDARD QUALITY WITH SILICONE ADHESIVE ON ONE SIDE (+260°C)

Pre-cut from 10 mm minimum to 1000 mm maximum

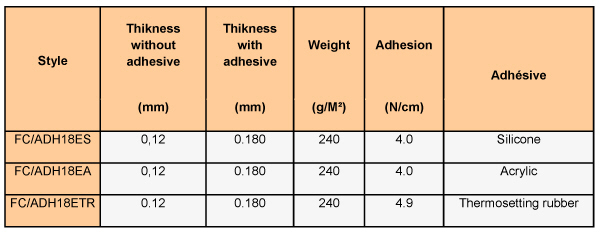

PTFE IMPREGNATED GLASS FIBRE

ACRYLIC ADHESIVE ON ONE SIDE (+170°C) (strong adhesion)

                                                                                                                                                                Cut out in way

Pre-cut from 10 mm minimum to 1000 mm maximum

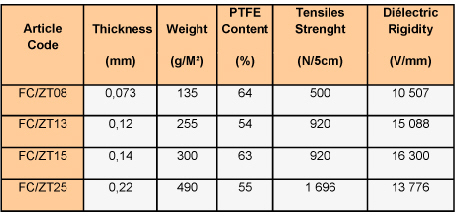

ZONE TAPE WITH ADHESIVE ON EDGES ONLY

This tape can be used without any interference to the transfer of heat at electrode level; moreover, the electrodes remain clean (reduction of contact temperature).

 Pre-cut from 10 mm minimum to 500 mm maximum (adhesive width on edges only according to yours needs).

ADHESIVES TECHNICAL DATA SHEET

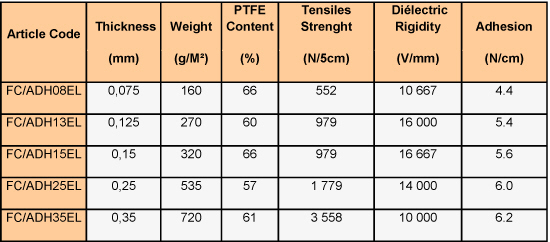

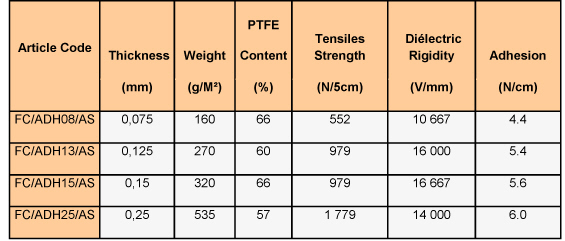

BLACK ANTI STATIC PTFE IMPREGNATED GLASS FIBRE

SILICONE ADHESIVE (+260°C) ON ONE SIDE

Pre-cut out of 10 mm minimum to 1000 mm maximum

These graphite-filled (black) fabrics have higher electric and heat conductivity which facilitates the transfer of heat, the elimination of static electricity (powder’s transport or explosive and inflammable products, the elimination of static in the textil industry, paper pulp manufacture, plastic film laminating, calandering).

GLASS FIBRE WITH SILICONE ADHESIVE  (FLAME RETARDANT)

 Pre-cut from 10 mm minimum to 500 mm maximum (thickness of adhesive according to your needs)

Application : Heat insulation and protection against chemicals.

GLASS FIBRE WITH ADHESIVE (TO DECORATE WITH RIBBONS)

 Pre-cut from 10 mm minimum to 500 mm maximum (thickness adhesive according to your needs)

Application : Thermical and chimical protection.

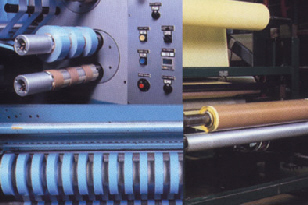

Applications for all above tables : The above fabrics have smooth surfaces and remarkable non-stick properties, welding belt for heat-sealing jaw covering (shrink wrapping, packaging…) thermoforming plaques, guides, sliding guides, food spouts, mould release sheet, conveyors of PE bottles and cosmetics packaging, lining of packaging tables, press and cylinder plates for the plastics industry, laminating, paper manufacturing, textile industry, luxury bottle desingn, printing industry, guiding rails, scrapers and raclettes, slides for the foodstuffs and confectionery industries, electrical insulation, heat and chemial insulation, non-stick walls for paint and spraybooth, heated mirrors and HF (PVC), joints, membrane, baking sheet for baking, confectionery and pastrymaking.
