TECHNICAL DATAT SHEET FOR NON ADHESIVE FABRICS
PTFE (Teflon) impregnated Glass and Kevlar fabrics provide a real solution whenever the remarkable properties of PTFE and the solidity of these fabrics are required.
The exceptional properties of PTFE garantee its successful use in many fields.
As the weft of glass fibre or Kevlar fabrics stabilizes PTFE, this avoids deformation due to compression while at the same time considerably reducing the coefficient of thermal expansion (excellent mechanical properties).

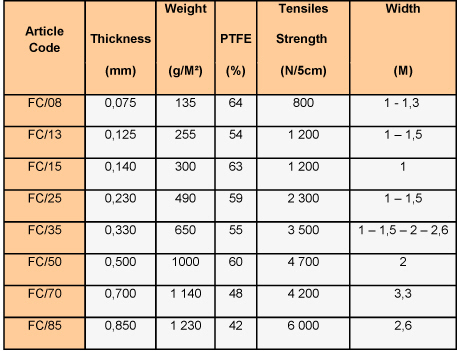

PTFE IMPREGNATED GALSS FIBRE FABRIC
HIGH MECANICAL RESISTANCE (+280°C)
Pre-cut from 10 mm minimum to 1000 mm maximum in rolls of 33M.
Anti-static possible with speciale manufacturing process.
Thanks to specific processing, attractive properties such as suppleness, high resistance to folding and tear, are obtained. Recommanded for the manufacture of small conveyor belts with high mechanical strength or for conveying on small cylinder diameters.

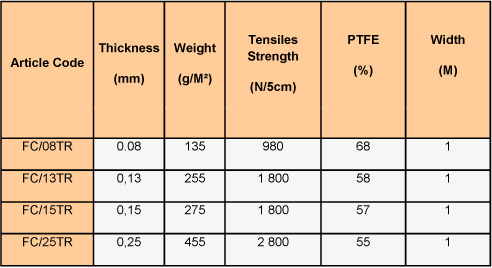

EXTRA-SMOOTH QUALITY (+280°C)
Pre-cut from 10 mm minimum until maximum width
High quality soldeing : large-scale bag-making, PVC windows…
These heavily impregnated fabrics can be used as dividers, phase separators,
Insulator for coils, cables, electrodes, electrolytic tanks and baths;
They are non-combustible and not burn under a electric are.

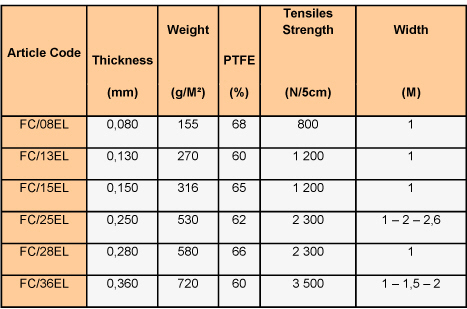

STANDARD QUALITY (+280°C)
Cut out of 10 mm minimum until maximum width.
All this products above can be too livred in anti-static (black).
This charged fabrics have a higher electric and thermic conductivity to assist heat’s transfer, eliminate static electricity (powder’s transport or explosive and inflammable products, the elimination of static phenomenum in textil industry, pulp, foam backing of plastics films and calandering operations).

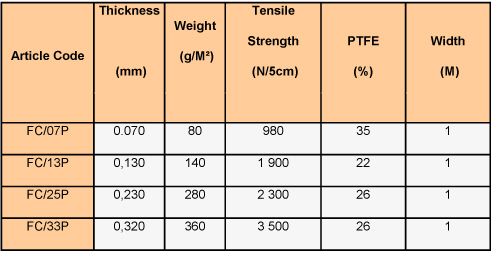

POROUS PTFE IMPREGNATED GLASS FABRIC (+280°C)
Pre-cut from 10 mm minimum to 1000 mm maximum in rolls of 33M.
Applications : These porous fabrics are used in drying operations (food products or varnish or resin-coated parts), conveying of film or paper vacuum mould release…

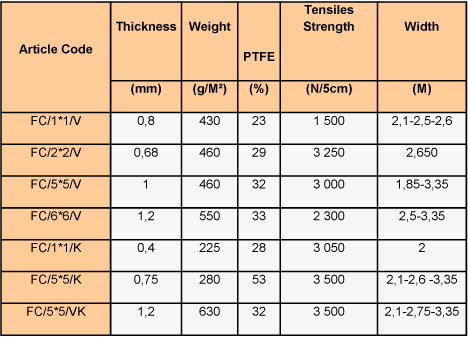

PTFE/GLASS – BLACK ANTI-STATIC OPEN MESH FABRIC (black)
(K : Kevlar, V : Tissu de Verre /Mesh 1*1,2*2,5*5,8*8)

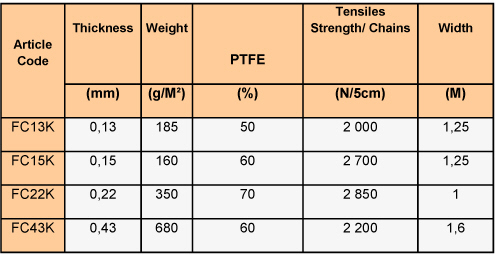

PTFE IMPREGNATED KEVLAR FABRIC (+220°C)
Pre-cut from 10 mm minimum to 1000 mm maximum in rolls of 30M.
This products can be manufactured in anti-static on request.
Applications : These fabrics are used becuase of their high flexibility and high mechanical resistance to impact, tear and abrasion. They can support mecanical constraints more higher than fabric threadbare. Because of very small absorbsion, they are recommandated in middle humid.
Uses for all above tables : welding belts for heat-sealing jaw covering (shrink wrapping packaging…), thermoforming plaques, guides, sliding guides, food spouts, conveyors of PE bottles and cosmetics packaging, lining of packaging tables, press and cylinder plates for the plastics industry, laminating, paper manufacturing, textiles, luxury bottle design, printing, guiding rails, scrapers adnd raclettes, slides for the food processing and confectionery industrie, electric insulation, protection against heat and chemicals, non-stick walls for paint and spray booths, heated and mirror and HF (PVC), joints, membranes, baking sheets for baking and confectionary.
SILICONE IMPREGNATED GLASS FABRIC TECHNICAL DATA SHEET
SILICONE IMPREGNATED GLASS FABRIC (230°C)
